Cisco VG224 FXS Port Unknown
Cisco VG224 FXS Port shows Unknown

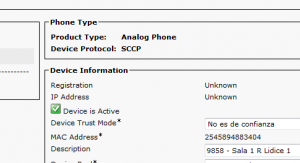

While working on VG224, the device shows all ports as unknown status on Call Manager.
This issue is found rarely, but you have some steps to diagnostic: network connectivity, protocol, voice ports. In my case, the VG is set as SCCP protocol, so I´m going to do some tests about it. Firstly verify the stcapp protocol. That is an easy step you must always do. In my case it was inactive.
VG224#show stcapp device summary
stcapp application state is inactive.
So I proceeded to enable it.
VG224(config)#stcapp
VG224(config)#exit
The stcapp feature allows CUCM to control analog phones through FXS ports in a Voice Gateway. The ports come back to be fine again:
VG224#show stcapp device summary
Total Devices: 24
Total Calls in Progress: 0
Total Call Legs in Use: 0
Port Device Device Call Dev Directory Dev
Identifier Name State State Type Number Cntl
———- ————— ——– ————- ——- ———– —-
2/0 AN2545894883400 IS IDLE ALG 9854 CCM
2/1 AN2545894883401 IS IDLE ALG 9855 CCM
2/2 AN2545894883402 IS IDLE ALG 9856 CCM
2/3 AN2545894883403 IS IDLE ALG 9857 CCM
2/4 AN2545894883404 OOS UNREGISTERED ALG Not Avail UNKN
2/5 AN2545894883405 IS IDLE ALG 9860 CCM
2/6 AN2545894883406 IS IDLE ALG 9861 CCM
2/7 AN2545894883407 IS IDLE ALG 9862 CCM
As you can see there is one port as unregistered, but that´s ok, because the analog phone was disconnected.

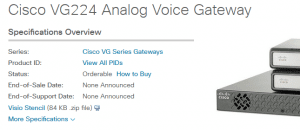

The Cisco VG224 is updated and you can buy it when you need it. The website stills shows it hasn’t been End of Life announced.
